Parameters |
Characteristics |

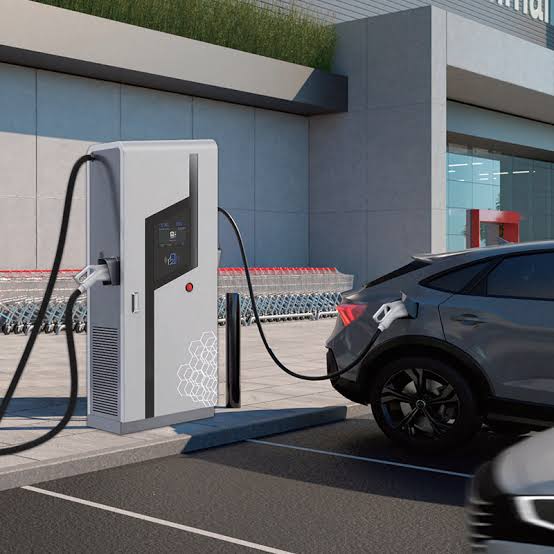

SIRINX DC Charger Specs |
||||||||
|
Model |
SIRINX (All) |
11KW – 360KW |
||||||||
|
DC Power Output |
Rated Power Output |
11 kW |
25 kW |
30 kW |
50 kW |
60 kW |
100KW |
120 kW |
240 kW |
360 kW |
|
Number of Charging Guns |
1 |
1 |
1 |
1 |
1 or 2 |
1 or 2 |
1 or 2 |
2 or 4 |
2 or 4 |
|
|
Max Output current (Per Gun)*** |
36A |
80A |
100A |
150A |
200A |
250A |
250A |
300A |
400A |
|
|
Output voltage |
100V - 1000V DC |
|||||||||
|
Output Charging Connector |
CCS1 / CCS2 (CHAdeMO / DC China (GB/T) / NACS optional) |
|||||||||
|
AC Power Input |
Input voltage |
415 Vac (±10%), 50/60 Hz, 3-Phase 5 Wire AC (L1+L2+L3+N+PE) |
||||||||
|
Max Input Current (Phasewise) |
22A |
50A |
60A |
100A |
120A |
200A |
240A |
480A |
720A |
|
|
Efficiency |
≥ 95% |
|||||||||
|
Isolation |
1 No. of MCCB connected at the input of charger to provide isolation |
|||||||||
|
Backup Power (Optional) |
Input Supply Failure Backup |
Battery backup of Minimum of 15 mins for the control system and billing unit. The datalogs should be synced with CMS during backup time, in case of drain out. |
||||||||
|
User Interface & Control functions |
Display |
7'' HMI Touchscreen |
10.4'' HMI Touchscreen |
|||||||
|
Languages- Supported |
English (Other Languages on request) |
|||||||||
|
Push Button |
Emergency Stop (Mushroom Red) |
|||||||||
|
RFID Reader |
As per ISO/IEC 14443 |
|||||||||
|
User Authentication |
via RFID card / QR code Scan / Mobile App (Via OCPP interface) |
|||||||||
|
Visual LED Indications |
Presence of Input Supply, Errors Indicator, State of Charge |
|||||||||
|
Payment options |
via Mobile App Wallet / Other payment Services |
|||||||||
|
Charging Options |
Mode selection based on Amount/Time/kWh |
|||||||||
|
Charging Modes |
1. via OCPP ( for CMS & Mobile App) 2. RFID + OCPP ( Fast authorization of Tag via OCPP) 3. RFID only (Offline) 4. Plug & Play (Offline and No user authorization) |
|||||||||
|
Metering and Billing |
Grid responsive metering and billing. Independent DC and AC Energy Meter for each output and Input with cumulative |
|||||||||
|
Dynamic Load Balancing |
Not Applicable for Single gun |
Available when multiple guns are connected Splitting of power outputs b/w guns Simultaneous charging of two electric vehicles |
||||||||
|
Communication |
Between Charger and CMS |
Wi-Fi, LAN/4G + OCPPv1.6 |
||||||||
|
Between EV Charger and EV |
IEC 61851 ( IS 17017 ) for CCS-2; DIN 70121 and ISO 15118 for Power Line Communication (PLC) |
|||||||||
|
Environment |
Operating Temperature |
-20°C to +55°C |
||||||||
|
Storage Temperature
|
-40°C to +70°C |
|||||||||
|
Altitude |
≤ 2000mtrs
|
|||||||||
|
Humidity |
5% to 95%, non-condensing |
|||||||||
|
Protection and Safety |
Input/Output protection |
Over & Under voltage protection Overload & Short circuit protection Residual Leakage Current & Ground Fault protection Grounding / Earthing protection Surge protection Over/Under temperature Protection Emergency Stop Switch Protection against electric shock |
||||||||
|
Safety As per |
IEC 61851-1:2017, IEC 61851-21-2 |
|||||||||
|
Mechanical |
Ingress Protection (IP) |
IP5X (IP6X available only on order) |
||||||||
|
Enclosure Protection |
IK10 |
|||||||||
|
Charging Cable Length |
5 Mtrs (With Retractable cord) |
|||||||||
|
Cooling |
Natural / Forced Air Cooling, Liquid cooling for higher power wattages (optional) |
|||||||||
|
Mounting |
Wall / Pedestal Stand |
Floor Mount |
||||||||
|
Disclaimer: Charger specifications are subject to change based on customization. |
||||||||||
|
Note: *** Max Output current (Per Gun) refers to the maximum output current that the charger can deliver when a single gun is in use. If multiple guns are connected then output current is dynamically gets distributed for each gun by load balancing algorithm. For e.g., 60KW DC fast charger can deliver a maximum output current of 200A when one gun is connected. If 2 guns are connected, then output current is dynamically distributed delivering 100A for each of the guns supporting simultaneous charging of two electric vehicles |
||||||||||
|
Note : Charger Specification subject to change |
||||||||||
Note : Charger Specifications are subject to change.
